    SUJ2 Standard Mould Parts Guide Pillar And Bush High Lubrication Low Tolerance

    Ask Lasest Price
    Brand Name : BD
    Model Number : BD~G000
    Certification : RoHS
    Price : negotiation
    Payment Terms : Western Union, L/C, D/A, T/T, D/P
    • Product Details
    • Company Profile

    SUJ2 Standard Mould Parts Guide Pillar And Bush High Lubrication Low Tolerance

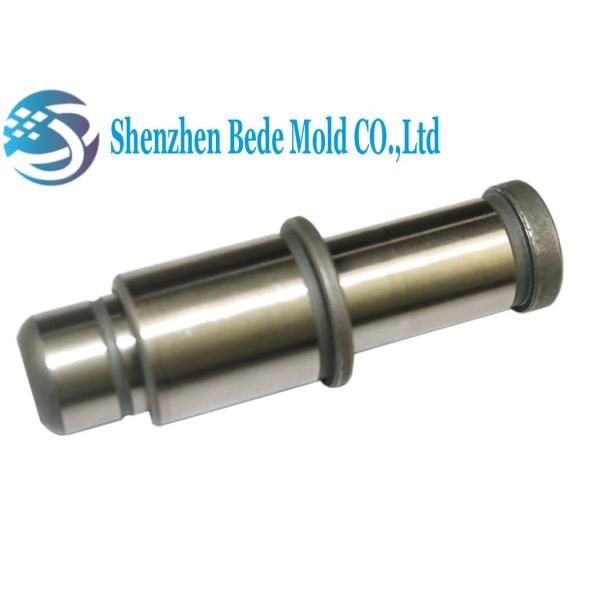

    High Lubrication Low Tolerance SUJ2 Materials Leader Pin / Guide Rod for Plastic Injection Mold


    Description

    Leader pins is a guide element used with components in the mold to ensure that the mold moves with precise positioning and guides the mold travel. It is usually cylindrical with shoulder and have some oil grooves.

    The material of guide pins usually uses bearing steel, die steel and so on. The bearing steel SUJ2 greatly strengthens the durability and commutativity of the guide rod, So its application is the most extensive.

    Quick Details

    Because of the reason of usage, the guide pins needs smooth surface,requiring small cylindrical tolerances and low surface roughness.


    materialsbearing steel, die steelRoughnessRa 0.8~1.0
    Sizecustomized and standardTolerance0.005mm
    hardnessHRC 50~55°ODM / OEMwelcome

    Standard Size

    We have the following standard sizes of leader pins in stock, generally can be shipped within 3 working days, if customized thimbles, delivery time is generally 15-20 days.

    Standard Sizes
    of Leader Pins
    Diameter
    16,18,20,22
    25,28,32,35,38
    40,45,50,60


    Packing and Shipping


    The leader pins are packaged with plastic bags with rust preventing oil, customized package is welcome.

    About the shipping, all the well-known express companies and ocean shipping can be selected, but in remote areas, we can only use EMS.
